Spanet SV2-VH Spa Controller and SV2T Touch Pad Package

Spanet SV2-VH Spa Controller and SV2T Touch Pad Package

$1,826.00
$1,826.00
available at checkout.

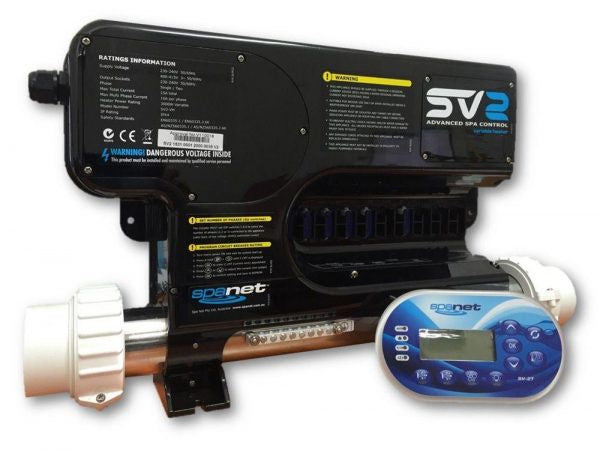

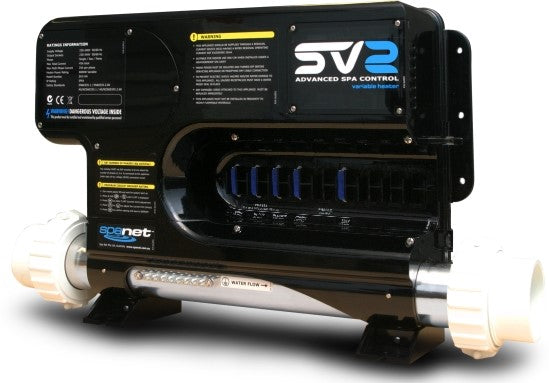

The new SV2-VH spa control pack complete with touch pad, featuring a 3kW Smart Variable Heater. Make optimum use of lower current power supplies. All SV Series controllers come with the following featurers: Multi Phase Capable, Heat Pump interface, Power Save Technology. The SV2-VH offers an attractive, simple to use touch pad with large, easy to read backlit display and buttons. All SV series touch pads are gel filled and robust by design.



SPECIFICATIONS

Power:

1 phase 230-240v AC

3 phase 400-415v AC

50/60Hz

MAX total current 20amp or 16amp per phase



Dimensions:

Controller:

544x309x90mm 5kg

Touch Pad:

Needs an oval cut out of 145mm long and 74mm wide.

Has an oval face size of 165mm long and 94mm wide



Outputs

Heater: 3kw Variable

Light x 1 (needs to be a Spanet LED light)

Touch Pad socket: x 1

Circulation Pump: Adj 1-24 hour

Ozone: x 1

Air Blower: x1 (Vari Spd)

Pump: 1 x 1 or 2speed pump
