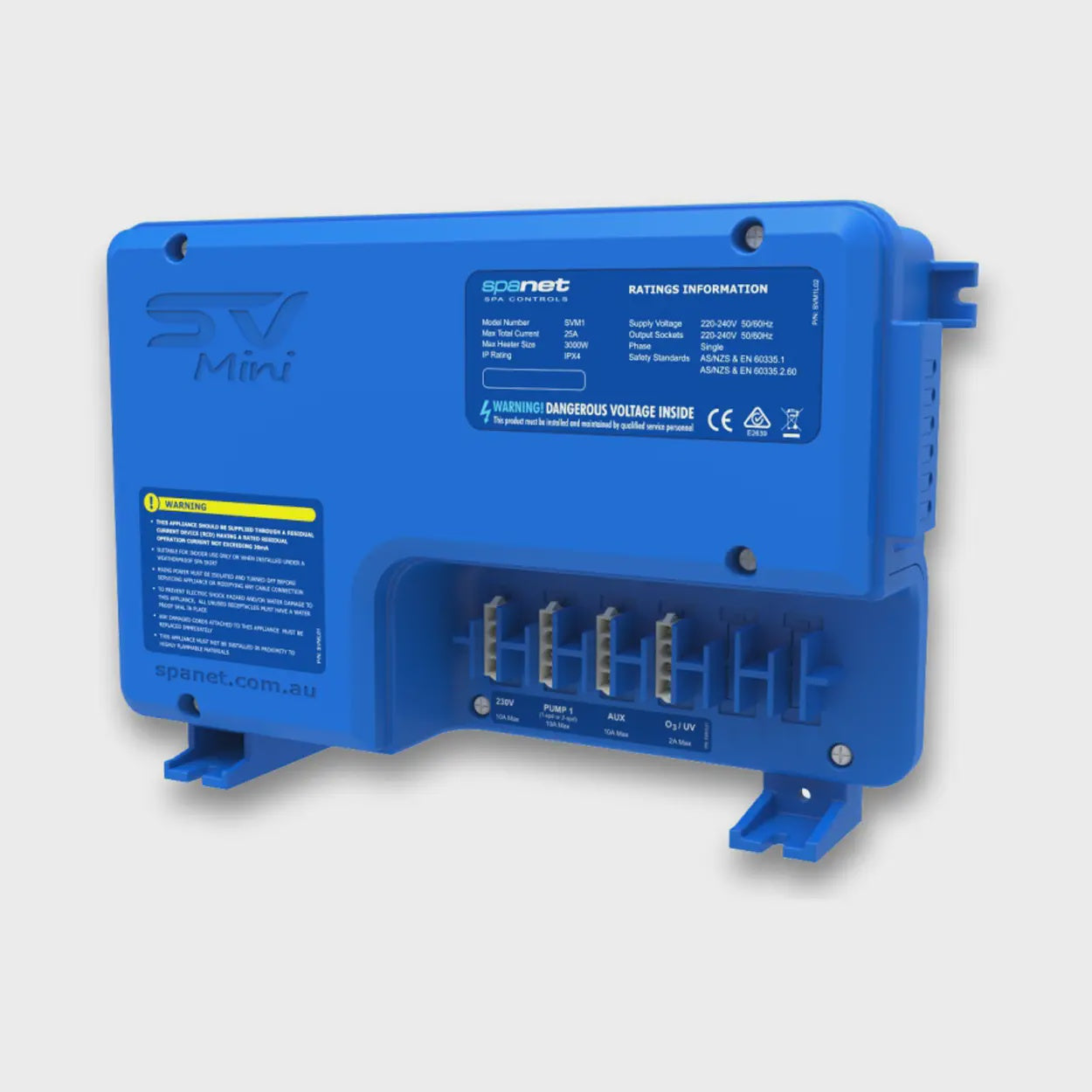

Spanet SV Mini 1 10amp Controller ONLY
SV Mini 230volt outputs
PUMP 1: Circ Pump, 1Spd Pump, 2Spd Pump (the pump on this outlet must be pushing water through the heater)
AUX: 1Spd Pump or Blower
230V, this outlet has a constant 230volts and is not switchable (can be used to power a heat pump or any other item requiring a constant 230volts)
O3/UV, this outlet is only to be used with an ozone system
SV Mini low voltage outputs
1 x Touch pad outlet
1 x Light (can only fit a Spanet SV Series Light in 2.5 or 5 )
1 x Heat Pump Port
1 x Wifi Port
SV Mini Power Ratings
Input Voltage: 220-240volt 50/60hz
Rated with mains lead: 15amp max
Rated when hard wired: 25amp max
Current rating: This unit is supplied with a 15amp lead and plug but the lead can be removed and the SV Mini can be hard wired with a 25amp power supply.
SV Mini Features
*In heater temp sensor
*Max Temp 41deg
*Adjustable Filtration
*Sleep Timer
*Heat Pump Interface
*Wifi Interface
*Programmable Load Shedding
Dimensions
Control box: 315W x 210H x 85D mm
Power lead: 3m
