SP800 Controller and Oval Touchpad

Davey Spa-Quip Spa Power 800

**THIS PRODUCT IS MADE IN AUSTRALIA**

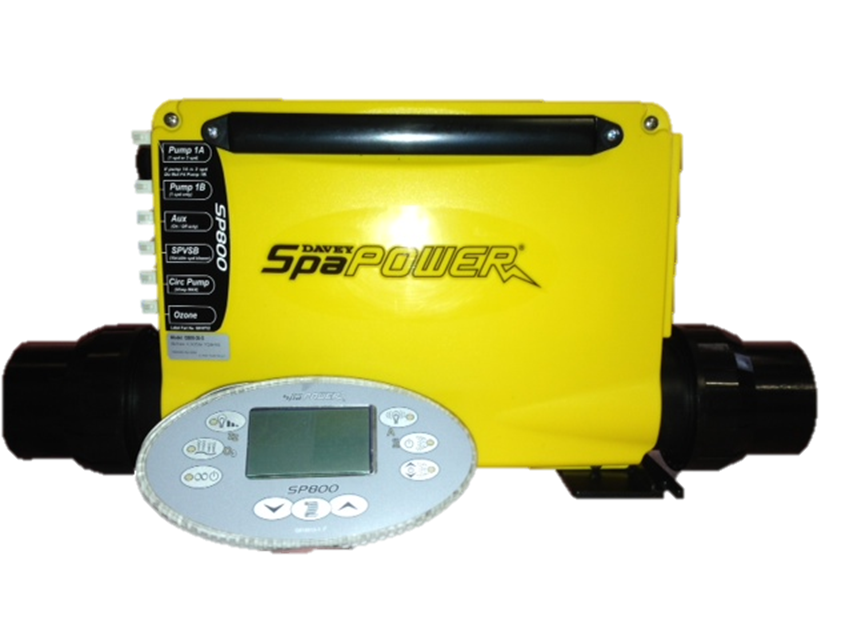

The SP800

System is sold complete with: Heater/Control Box, 2 X 50mm unions, 1 X Touchpad and overlay.

This Controller can be set up in the following configurations (Download user guide from task tab for full details)

High Voltage AMP Sockets : Pump 1A (one or two speed pump) Pump 2 (single speed pump, this socket can't be used if socket 1A has a two speed pump fitted). AUX Output (this socket can run a blower or pump) SPVSB (this socket can only be used for a Davey Variable speed blower) Circ Pump Socket, Ozone Socket/

Low Voltage Sockets inside controller: 2 X Touch pad sockets, 4 X Davey LED light sockets, 1 X inpool temp sensor socket, 1 X 12volt light Output.

NOTE: If a 2speed pump is fitted to Pump 1A socket you can't use 1B socket.

NOTE: If running a laing circ pump you need to buy heater element inserts, this will only work on the 2.0kw model.

NOTE: Rectangular touch pads can be ordered on request (good idea if retro fitting).
